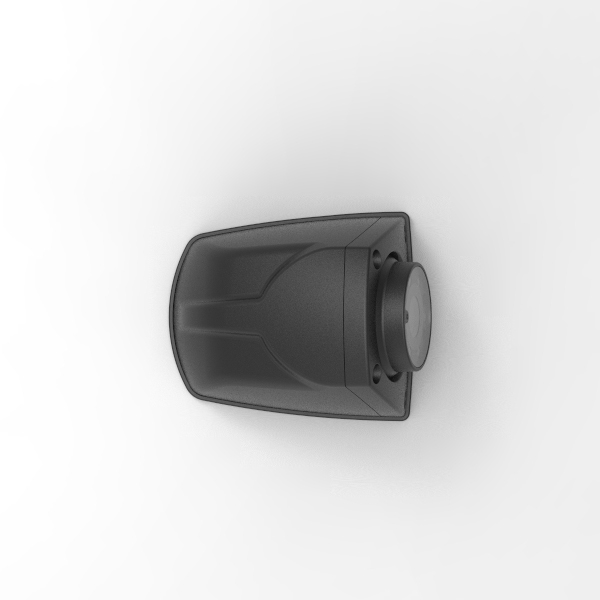

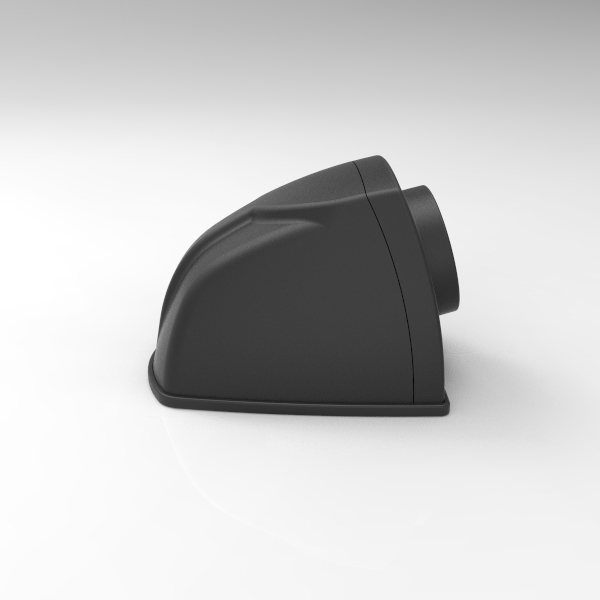

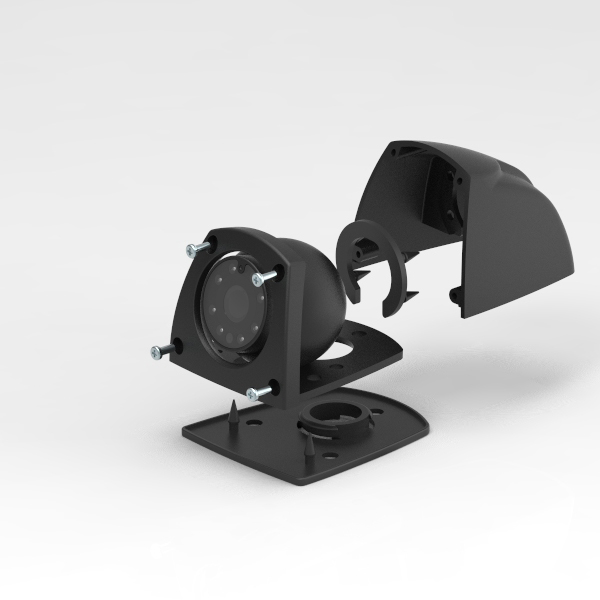

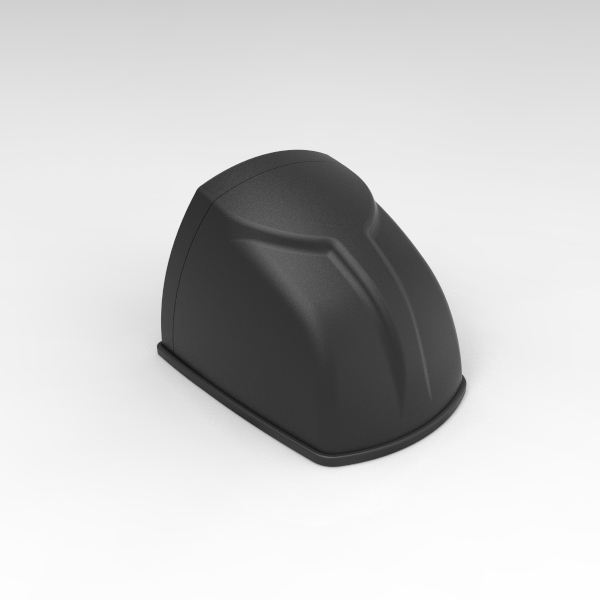

Side View Camera
(Model:MSV15)
- Application: various vehicles and large mechanical equipments, including ships, trucks, buses, school buses, ambulances, garbage trucks, fire engines, agricultural vehicles, concrete mixer lorries, cranes, excavators, forklifts, road sweepers and hoists etc
- Audio output and mirror are optional
- Optional colors: black, white, silver
- DC 24V is optional
| Sensor |
1/4” PV2109K |
| Resolution |
1296 (H) x 736 (V) |
| S/N Ratio |
More than 44dB (AGC Off) |
| Lens |
2.5 mm |
| Min Illumination |
0 Lux (IR LED ON) |
| IR Led |
8 pcs |
| Night Vision Distance |
35 ft |
| Waterproof |
IP67 |
| Power Consumption |
130mA |
| Power Voltage |
DC 12V |
| Operation Temperature |
-20℃~+70℃ |
