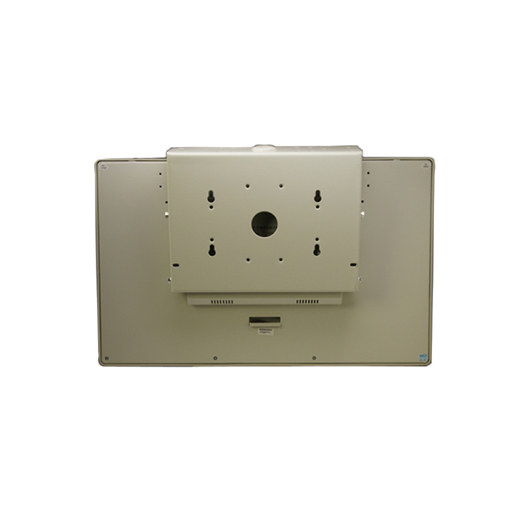

22 inch Fixed LCD Monitor
(Model:HZ-S2203K)
Features
  • 22 inch TFT LCD monitor
  • Roof mounting, wall mounting and the hoop mounting way can be freely chosen
  • Avoid bumping and scuffing design
  • Built-in isolation power
  • High luminance, broad angle of view
  • Enlarge underside angle of view
  • The power on logo can be designed for the customers
  • Chinese and English language OSD and the others can be optional
  • Beige, grey and the black color are frequently chosen
  • CVBS video input, Q9/VGA/HDMI are optional.
  • TV tuner and protected glass are also optional
Specification
Aspect Ratio 16:9
Screen Size 477.1×268.5(mm)
Resolution 1920×1080
Brightness ≥350cd/㎡
Contrast 1000:1
Response Time ≤8ms
View Angle H/V: 170°/160°
Video Format PAL/NTSC
Working Voltage DC12V/24V
Power <35W
Working Environment -20 ℃ ~ +60 ℃
