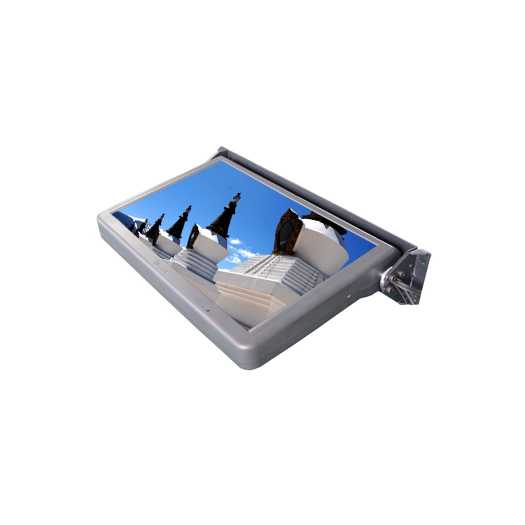

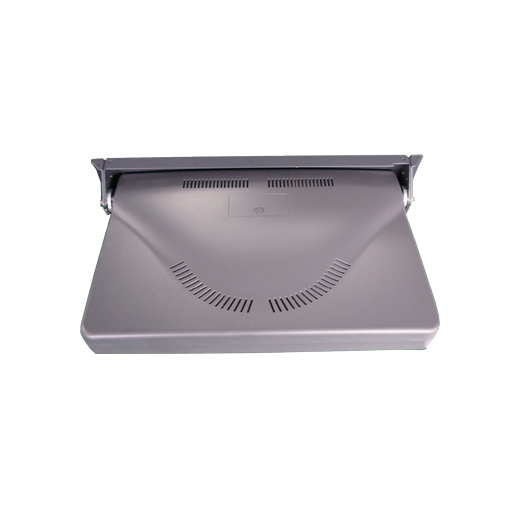

19 inch Smart Motorized LCD Monitor
(Model:HZ-19FB24K)
- 19 inch TFT LCD monitor
- Worm gear + planetary gear + Stepper Motor
- Installation Method: Ceiling, embedded
- Avoid bumping and scuffing design
- High lightness, ROHS compliant
- Intelligently adjust angle, angle memory function
- Low-noise, high reliability design
- Compatible with a variety of flip control mode
- Internal isolation design, anti-interference ability
- Wide range voltage input
- The power on logo can be designed for the customers
- Chinese and English language OSD and the others can be optional
- Beige, grey and the black color are frequently chosen
- CVBS video input, Q9/VGA/HDMI are optional.
- TV tuner and protected glass are also optional
| Aspect Ratio |
16:9 |
| Screen Size |
408.24×255.15 (mm) |
| Resolution |
1440×900 |
| Brightness |
≥350cd/㎡ |
| Contrast |
1000:1 |
| Response Time |
≤8ms |
| Flip Noise |
≤55dB |
| View Angle |
H/V: 170°/160° |
| Video Format |
PAL/NTSC |
| Working Voltage |
DC24V (15~36V) |
| Power |
<40W |
| Working Environment |
-20 ℃ ~ +60 ℃ |
